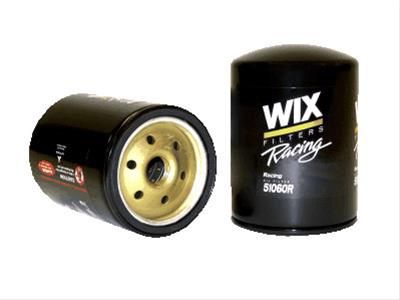

WIX 51060R Racing Oil Filter

WIX 51060R Racing Oil Filter – GM / Chevy Small-Block V8, High-Flow Spin-On

The WIX 51060R is a high-flow racing oil filter built for circle track, drag, and high-performance street engines that need more flow and less pressure drop than a standard street filter. With a low-restriction racing media, heavy-duty can, and 13/16"-16 thread, it’s a go-to spin-on for many Chevy small-block and big-block V8 builds running remote or block-mounted filters.

• Brand: WIX Filters

• Part Number: 51060R

• Product Type: Racing spin-on oil filter

• Intended Use: Circle track, drag racing, high-performance engines

• Thread Size: 13/16"-16

• Gasket OD (approx.): 3.44"

• Filter OD (approx.): 3.66"

• Overall Height (approx.): 5.18"

• Micron: 61 Microns

• Bypass Valve: None

• Anti-Drainback Valve: Yes

• Filter Media: Low-restriction racing media for maximum flow at high RPM

• Shell: Heavy-duty canister for higher burst strength vs. many standard filters

• Typical Applications: GM/Chevy small-block and big-block V8 race engines, common remote filter mounts using 13/16"-16 thread

• Quantity: Sold individually

• Country of Origin: Made in USA (country of origin may vary by batch; check box for exact marking)
