Cylinder Head Bolt Set – GM LS-Series – Services 1 Cylinder Head

Fel-Pro ES72220 Cylinder Head Bolt Set – GM LS-Series – Services 1 Cylinder Head

The Fel-Pro ES72220 Cylinder Head Bolt Set is a replacement head bolt kit designed for GM LS-series engines. This kit is ideal for head gasket replacement, cylinder head service, or engine rebuild work where the original torque-to-yield head bolts should not be reused.

Built for proper clamping force and reliable sealing, this bolt set helps secure the cylinder head to the engine block and supports proper head gasket compression. Whether you are repairing a daily driver, refreshing a work truck, or rebuilding an LS-based performance engine, this kit gives you the correct hardware needed for one cylinder head.

Features:

• Fits many GM LS-series V8 applications
• Services one cylinder head only
• Two sets required for a complete V8 engine
• Designed for use with torque-to-yield cylinder head bolt applications
• Helps maintain proper cylinder head clamping force
• Suitable for head gasket replacement, cylinder head repair, and engine rebuilds
• Replacement-style hardware for a clean, reliable repair
• Manufactured by Fel-Pro, a trusted name in engine sealing products

Common Applications:

• GM LS-series V8 engines
• Chevrolet and GMC truck/SUV LS-based engines
• 4.8L, 5.3L, 6.0L, and 6.2L LS applications
• Engine rebuilds
• Head gasket replacement
• Cylinder head removal and installation

Important Notes:

This kit services one cylinder head only. For a complete V8 engine, order two ES72220 head bolt sets.

Always follow the manufacturer’s recommended torque sequence, torque angle procedure, and service manual instructions. Torque-to-yield head bolts are commonly designed for one-time use and should not be reused once removed.

Part Number: ES72220
Brand: Fel-Pro
Product Type: Cylinder Head Bolt Set
Engine Family: GM LS-Series
Thread Pitch: 11mm-2.0 / 8mm-1.25
Quantity: Services 1 cylinder head

Important bolt-style note:

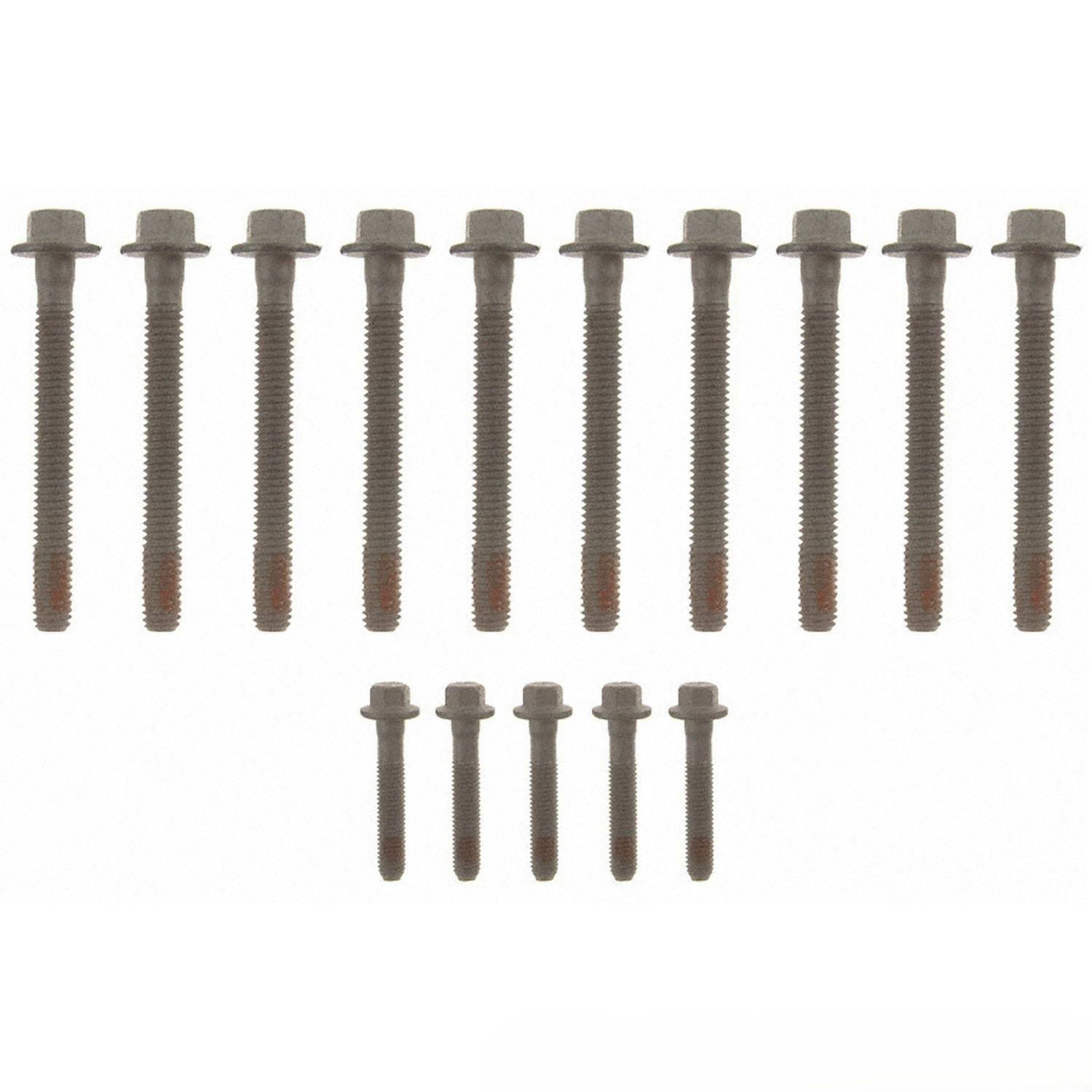

This kit is for engines using the same-length M11 main cylinder head bolts. ES72220 is listed with 10 M11-2.0 x 100 mm main bolts and 5 M8-1.25 x 45 mm smaller bolts per cylinder head.

If your engine uses the earlier/mixed-length bolt setup with 8 long M11 bolts and 2 shorter M11 corner bolts per cylinder head, use Fel-Pro ES72173 instead. ES72173 is listed with 8 M11-2.0 x 155 mm bolts, 2 M11-2.0 x 100 mm bolts, and 5 M8-1.25 x 45 mm bolts per cylinder head.

Fitment recommendation:
Because GM LS engines have overlap by year, engine code, and cylinder head design, always confirm by comparing the original head bolt lengths before ordering. If all main M11 head bolts are the same length, ES72220 is the correct style. If the engine has the two shorter corner bolts with the longer main bolts, order ES72173 instead.

Sold by Part-Ticular Parts Inc., a Canadian company offering Canadian and imported products.
